A Hitchhiker’s Guide to the Array API Standard Ecosystem

PyData Paris 2025

Lucas Colley

2025-09-30

Scan to view the slides

About Me

  • Maintainer: SciPy, Pixi, array-api-extra
  • Consortium for Python Data API Standards Member
  • Computer Science & Philosophy
    Master’s Student, University of Oxford
  • Just finished working @ prefix.dev
    (European Summer of Code)

Agenda

  1. The Idea, Motivation, and Solution
  2. Tour of the Ecosystem
  3. Status and Looking Forwards

The Idea

Arrays

  • N-dimensional, grid-like data structure
  • Most famously, numpy.ndarray
  • “rectangular” shape, data type
  • fast, easy to manipulate
  • used everywhere

Arrays

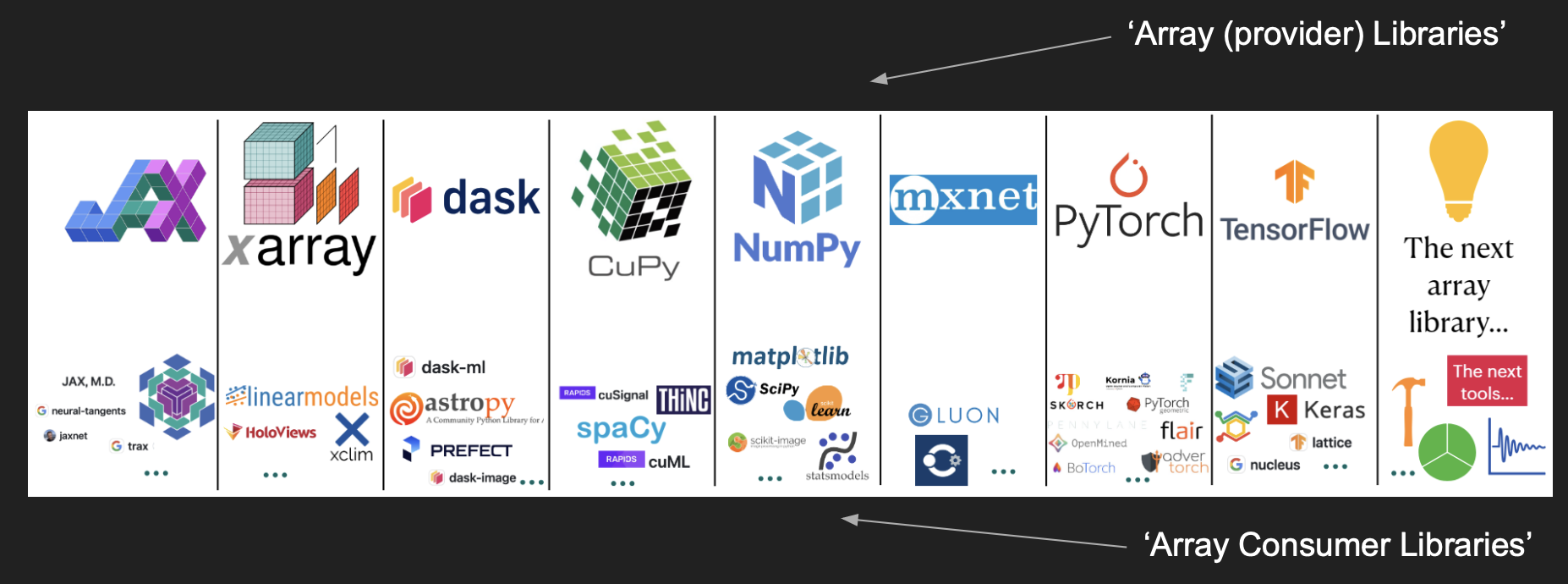

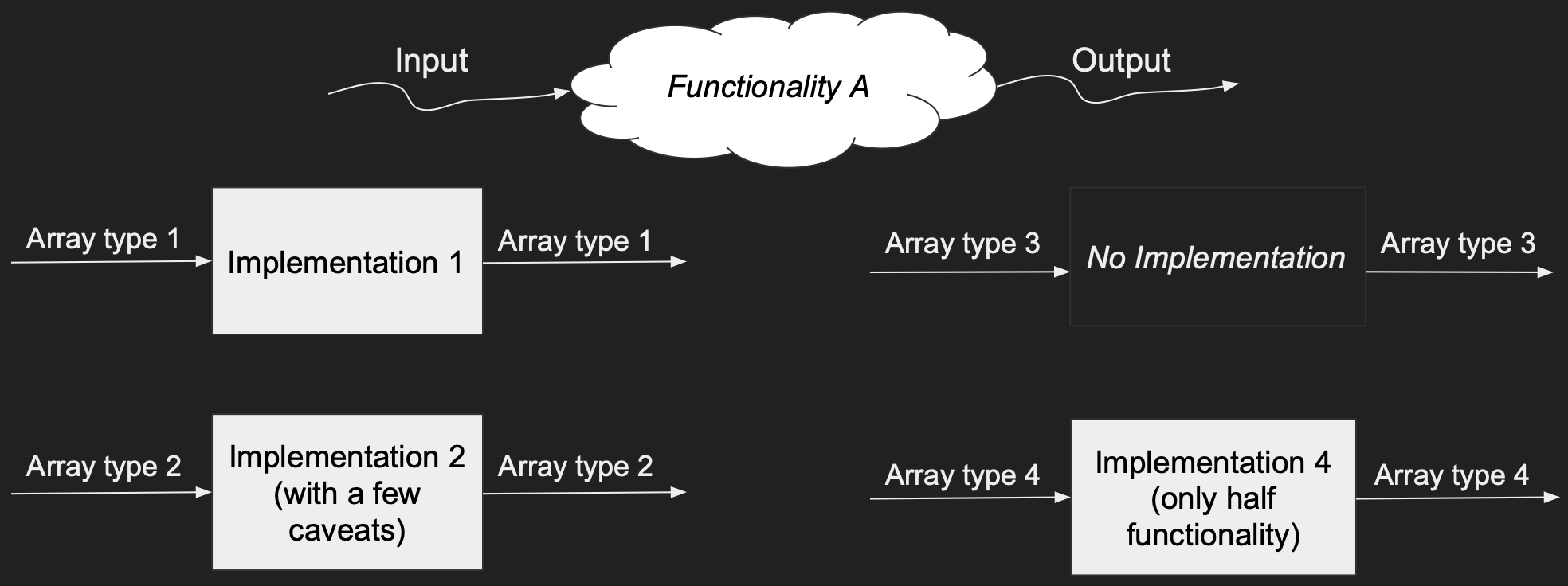

Ecosystem (now)

Credit: Aaron Meurer, ‘Python Array API Standard’, SciPy 2023

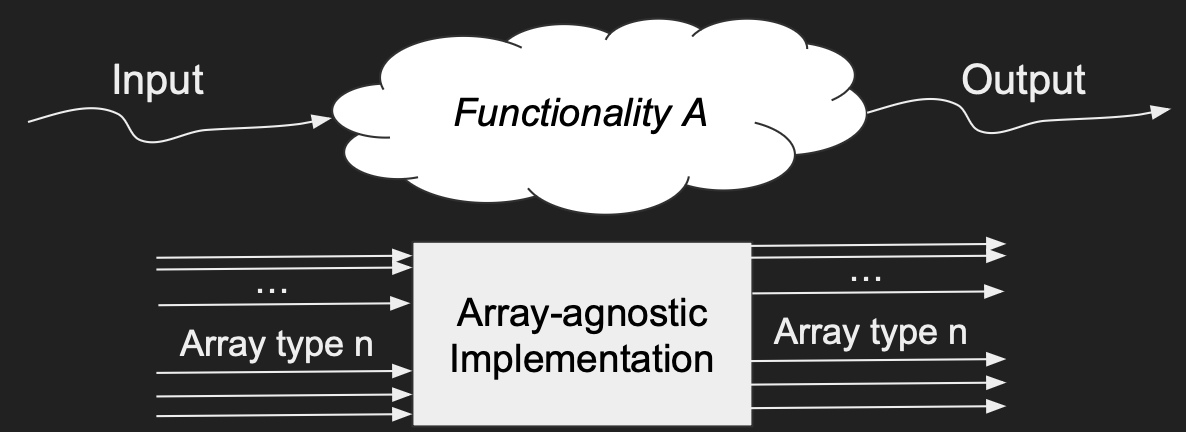

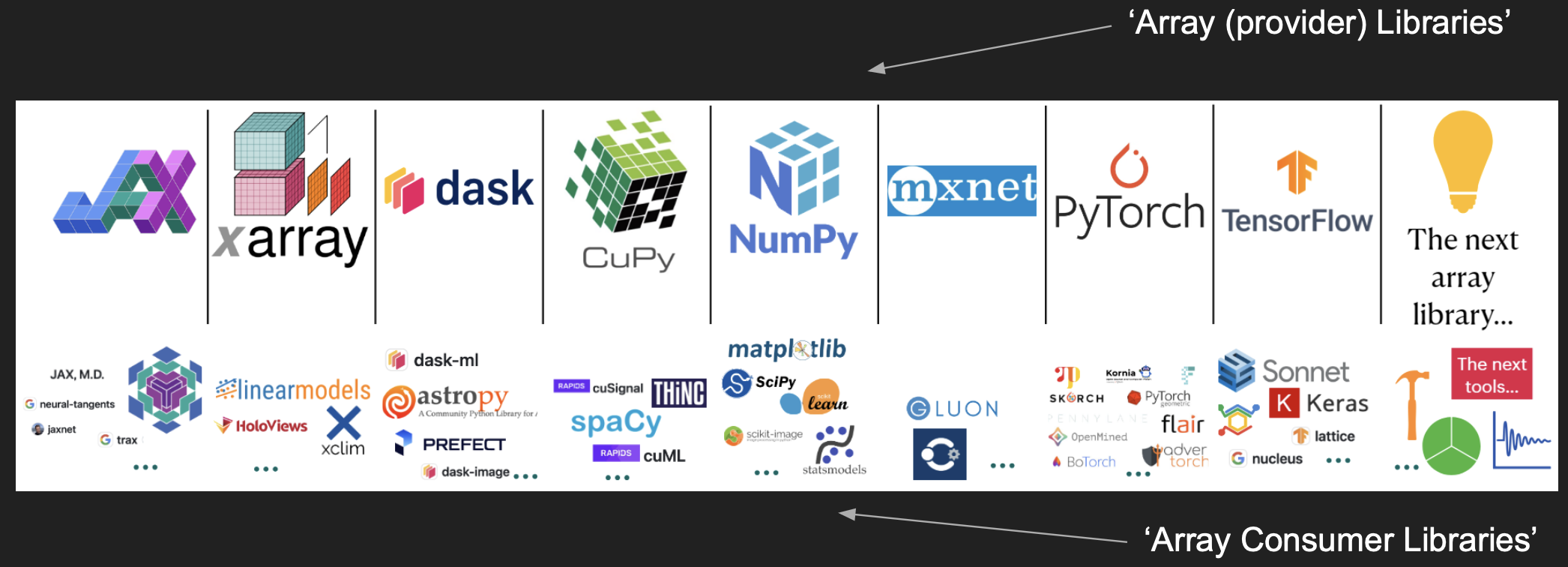

Ecosystem (the idea)

  • we want to remove these barriers between array ecosystems

Motivation

Why? — End Users (1/2)

  • want to be able to switch array libraries without reinventing their entire stack
    • real-world example: a reinforcement learning lab shifts their core pipelines from PyTorch to JAX1
    • they probably had a lot of extra tools/scripts that are not specific to their domain of application
      (e.g. I/O, functionality found in SciPy)
    • it shouldn’t be difficult to keep these tools/scripts working

Why? — End Users (2/2)

  • avoid repeated transfers between array libraries or devices in their pipelines
    • can be slow, and adds undesirable complexity
  • enable experimentation:
    • try out new hardware
    • try out functionality specific to an array library

Why? — Array consuming libraries

  • provide users with hardware acceleration and interoperability
  • without maintenance burden increasing massively
    • supporting 3 libraries shouldn’t be 3x the effort!
  • libraries with useful functionality shouldn’t ‘die’ just because the ecosystem moves on to a new array library

Why? — Array providing libraries

  • existing libraries:
    • interoperability with shiny new consuming libraries
    • API decisions can be made collaboratively with other array libraries
  • new libraries:
    • given a concrete API to implement
    • rewarded with automatic compatibility with consuming libraries

Why? — Ecosystem

Why? — Ecosystem

  • reduce duplicate work and maintainer burden

Solution

How?

The Consortium

  • ‘The Consortium for Python Data API Standards’
  • https://data-apis.org
  • cross-ecosystem consortium
  • has been working on this for 5 years now

Tour of the array API standard ecosystem

Tour

Libraries under the consortium umbrella:

  • array-api
  • array-api-tests
  • array-api-compat
  • array-api-strict
  • array-api-extra
  • array-api-typing

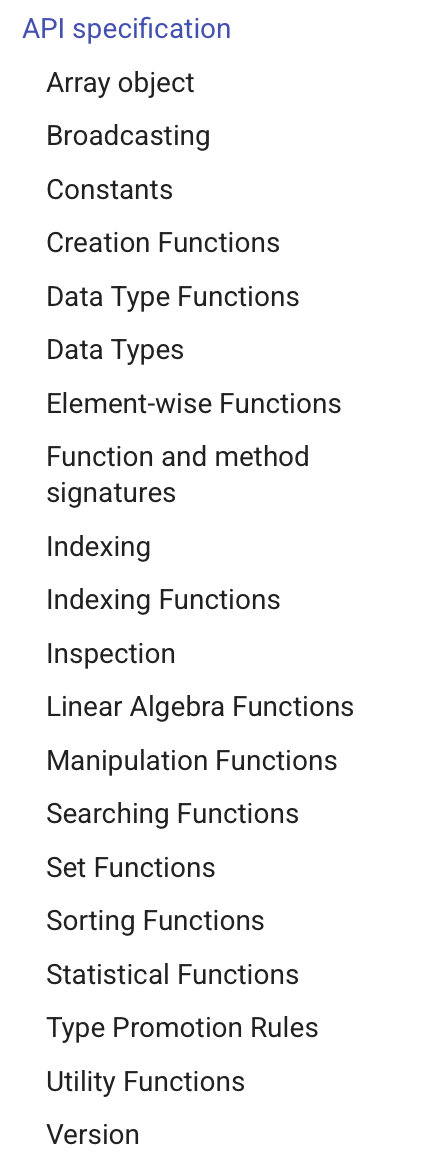

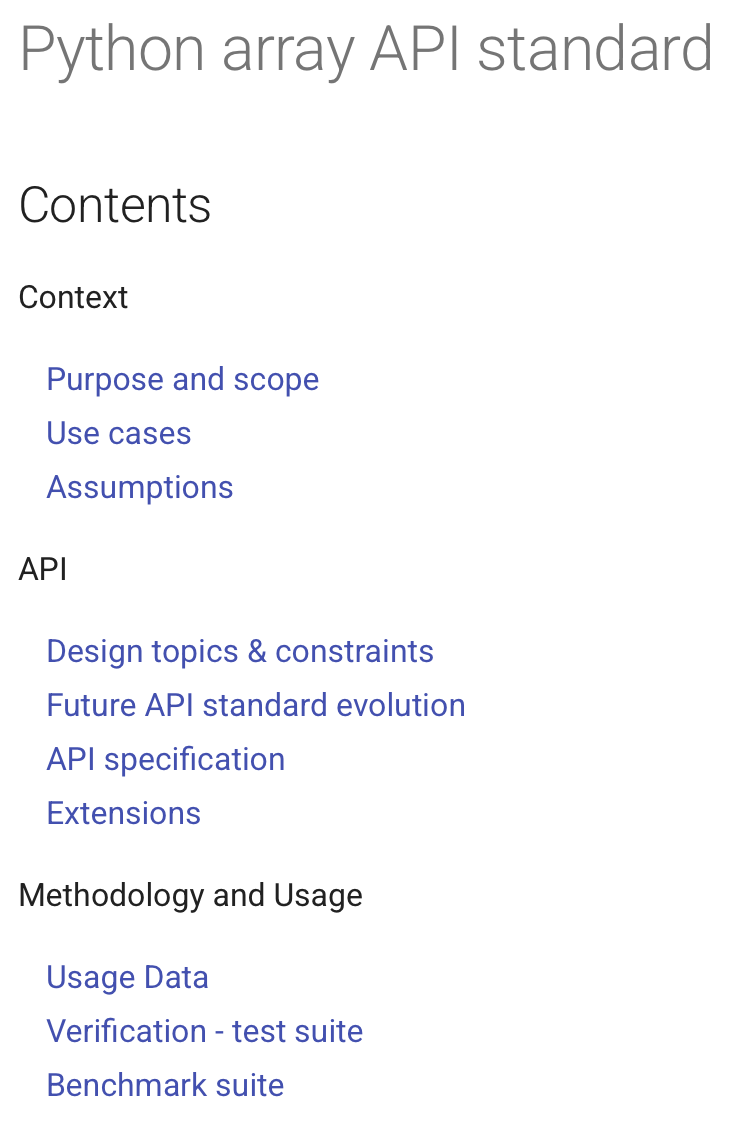

Tour — array-api

Tour — array-api

Tour — array-api

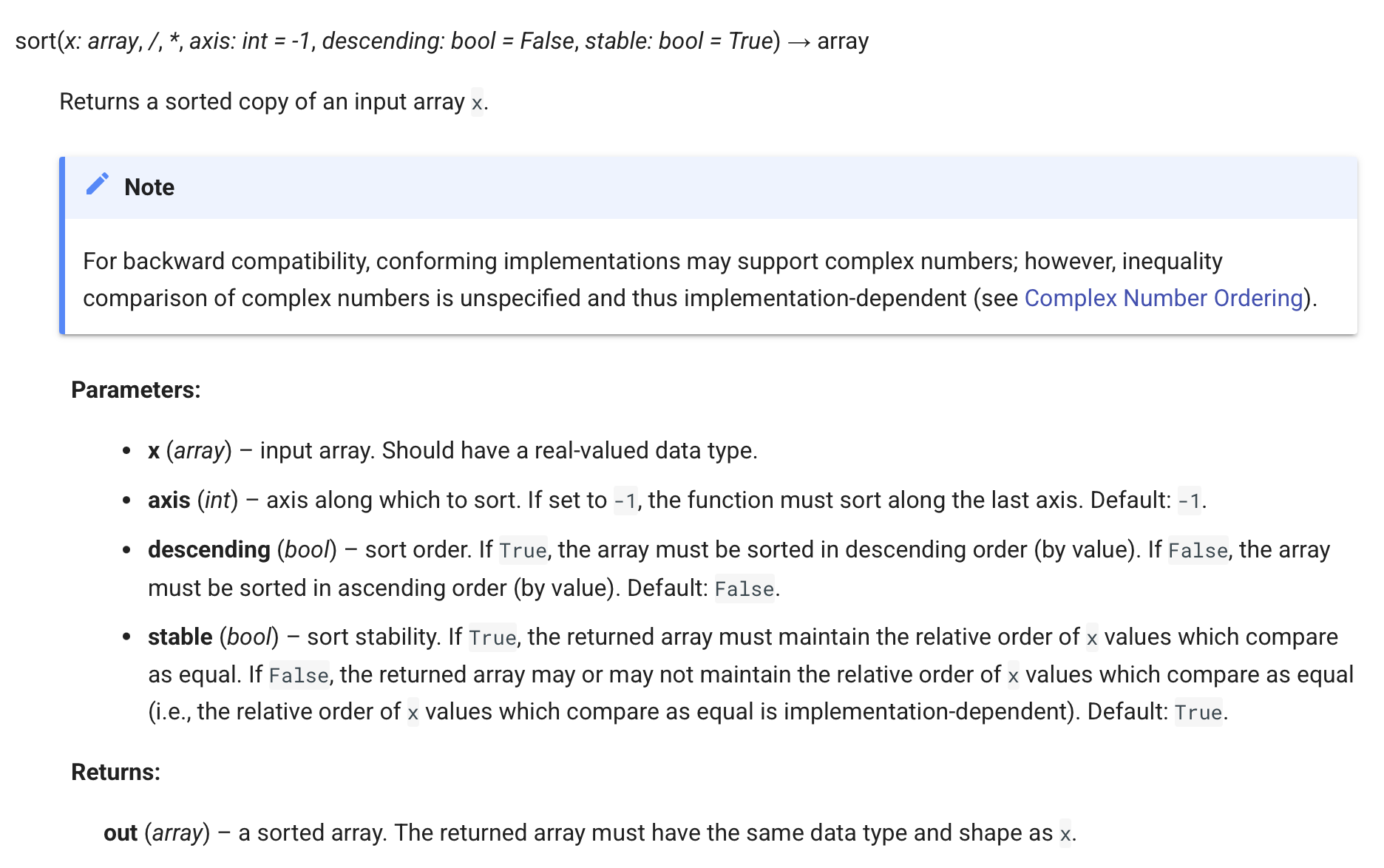

  • tells array (providing) libraries what to implement
  • tells array consuming libraries the API which they can use

The Array API Standard

Aaron’s SciPy 2023 Talk
  • past work, design principles, methodology

Tour — array-api-tests

  • tests for compliance with the standard API specification
  • for array (providing) library developers
  • uses hypothesis (hear more in the SciPy 2023 talk)

Tour — array-api-compat (1/2)

  • compatibility layer with existing array (providing) libraries
  • for use in array consuming libraries
  1. wrappers for compliant behaviour
    • some very thin (e.g. NumPy), some quite large (e.g. PyTorch)
    • exposes namespaces, e.g. array_api_compat.numpy

Tour — array-api-compat (2/2)

  1. helper functions
    • most interesting one: array_namespace
    • get a compatible namespace for the input array
# scipy.cluster.vq.whiten
def whiten(obs, check_finite=None):
    xp = array_namespace(obs)
    if check_finite is None:
        check_finite = not is_lazy_array(obs)
    obs = _asarray(obs, check_finite=check_finite, xp=xp)
    std_dev = xp.std(obs, axis=0)
    zero_std_mask = std_dev == 0
    std_dev = xpx.at(std_dev, zero_std_mask).set(1.0)
    if check_finite and xp.any(zero_std_mask):
        {snip}
    return obs / std_dev

Tour — array-api-strict (1/2)

  • strict, minimal implementation of the standard
  • for consuming library developers to test their libraries
  • ensure you are not relying on unspecified behaviour

Tour — array-api-strict (2/2)

# scipy/cluster/tests/test_hierarchy.py
def test_linkage_cophenet_tdist_Z(self, xp):
    # Tests cophenet(Z) on tdist data set.
    expectedM = xp.asarray([268, 295, 255, 255, 295, 295, 268, 268, 295, 295,
                            295, 138, 219, 295, 295])
    Z = xp.asarray(hierarchy_test_data.linkage_ytdist_single)
    M = cophenet(Z)
    xp_assert_close(M, xp.asarray(expectedM, dtype=xp.float64), atol=1e-10)
  • can parametrise existing tests with xp
    • configure pytest to include array_api_strict
      in xp when it is installed

Tour — array-api-extra (1/3)

  • for consuming library developers
  • abbreviated to xpx in code
  1. extra functions built on top of the standard
    • sharing functions that may be widely useful
    • implementations in terms of the standard
    • also, delegation to existing implementations

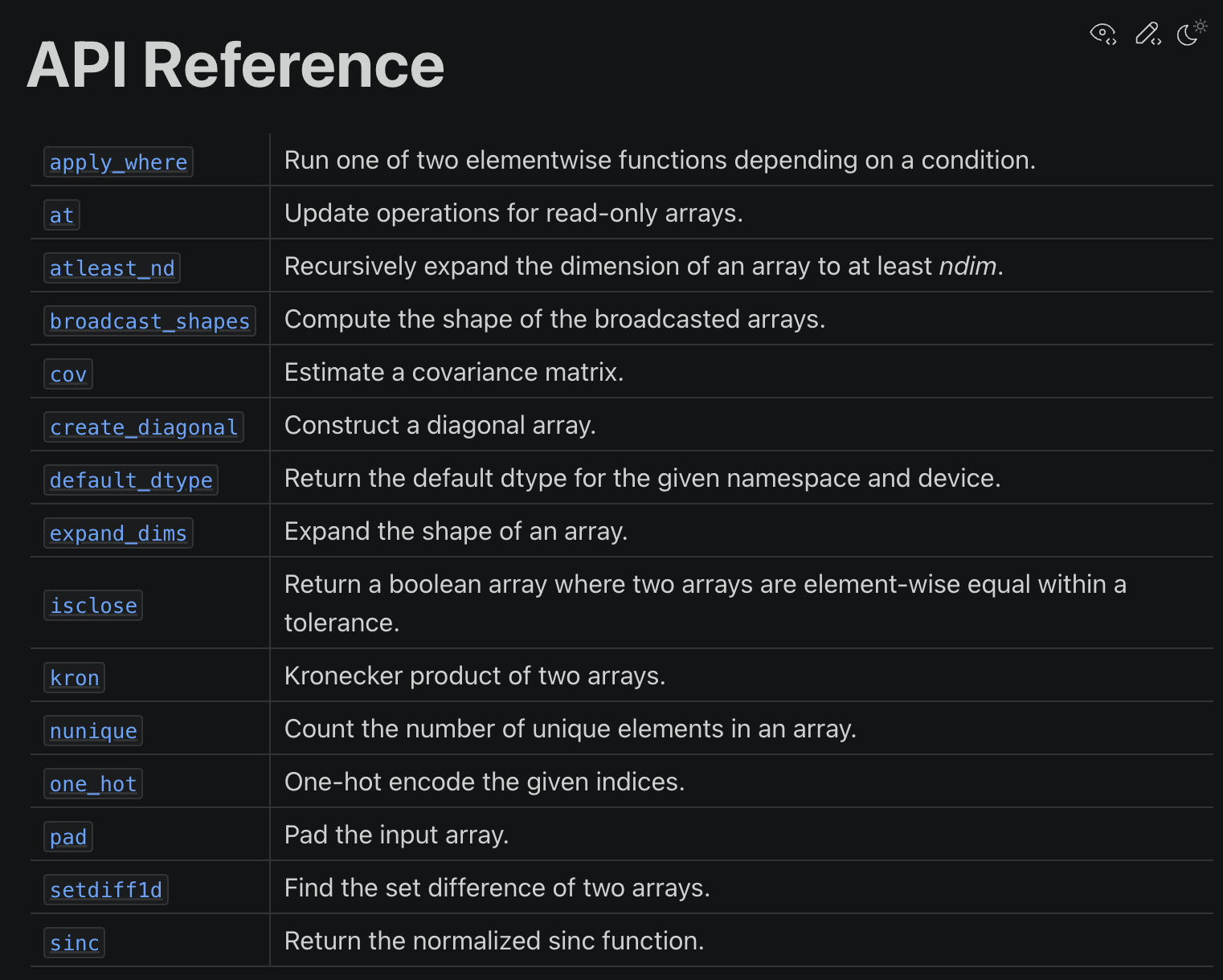

Tour — array-api-extra (1/3)

Tour — array-api-extra (2/3)

  1. tools for lazy backends (JAX, Dask) and read-only arrays
    • xpx.at — index update functionality for libraries lacking in-place modifications
# scipy.spatial.transform.Rotation.inv
def inv(quat: Array) -> Array:
    return xpx.at(quat)[..., :3].multiply(-1, copy=True)
# Cython implementation for NumPy
def inv(double[:, :] quat) -> double[:, :]:
    cdef np.ndarray[double, ndim=2] q_inv = np.array(quat, copy=True)
    q_inv[:, 0] *= -1
    q_inv[:, 1] *= -1
    q_inv[:, 2] *= -1
    return q_inv

Tour — array-api-extra (2/3)

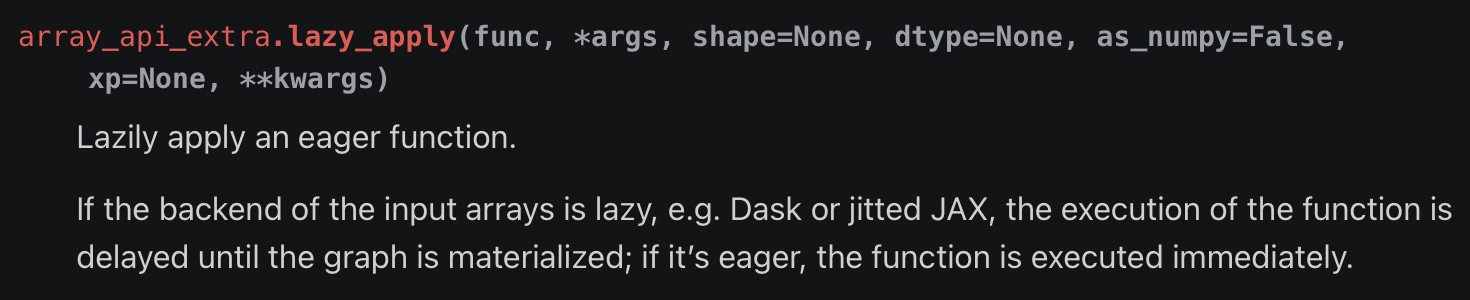

  1. tools for lazy backends (JAX, Dask) and read-only arrays
    • xpx.at — index update functionality for libraries lacking in-place modifications

Tour — array-api-extra (3/3)

  1. testing utilities for consuming libraries (more coming!)
    • xpx.testing
    • enable jitted JAX and allow Dask materialisation
    • for use in an xp pytest fixture

Tour — array-api-typing

  • experimental static typing support
  • still very early in development
  • for consuming library authors with typed libraries

Status

Status — Array Libraries

  • numpy, cupy, jax.numpy:
    ~full compatibility in main namespaces
  • torch: ~full compatibility via array-api-compat
  • dask.array: decent support via array-api-compat
  • decent support in ndonnx, cubed-dev/cubed, pydata/sparse, Blosc/python-blosc2
  • interest from paddle, mlx

Status — scipy (1/3)

  • experimental support via setting the environment variable
    SCIPY_ARRAY_API=1
  • vendoring array-api-compat and array-api-extra
  • testing against array-api-strict, cupy, torch, jax.numpy, dask.array
  • CI: GPU job, float32 PyTorch job
    • using Pixi for reproducibility

Status — scipy (2/3)

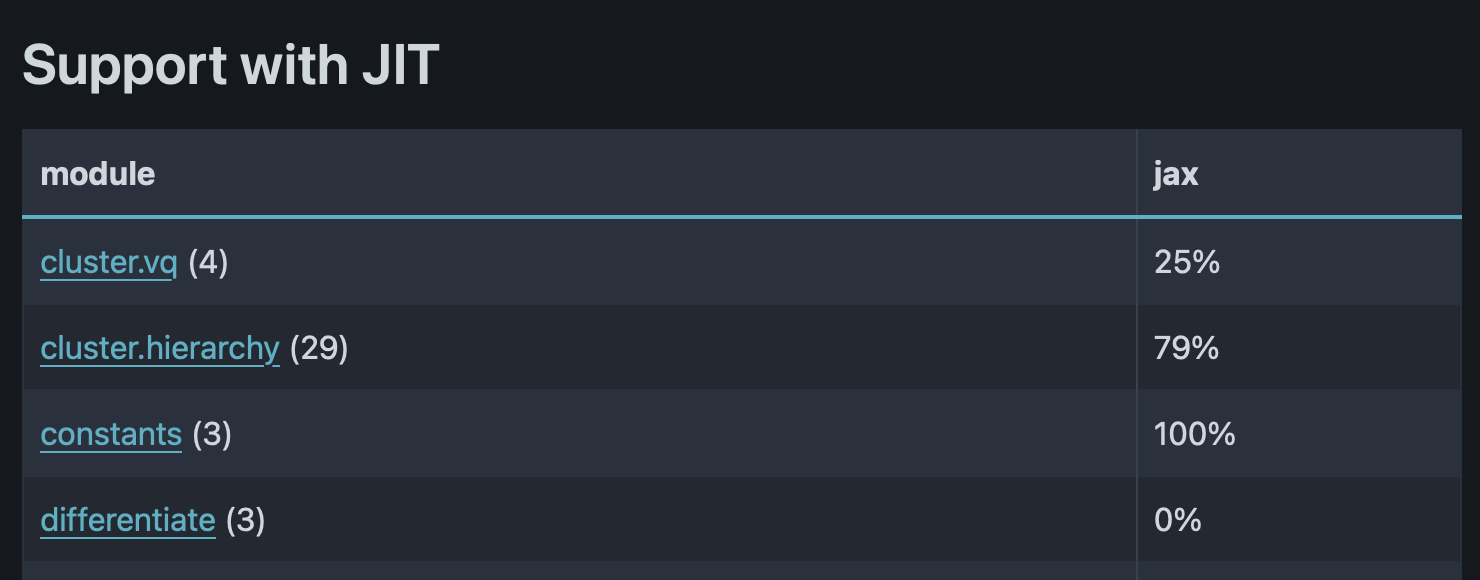

SciPy array API standard support documentation

  • Now with API coverage tables!

Status — scipy (3/3)

Status — scipy (3/3)

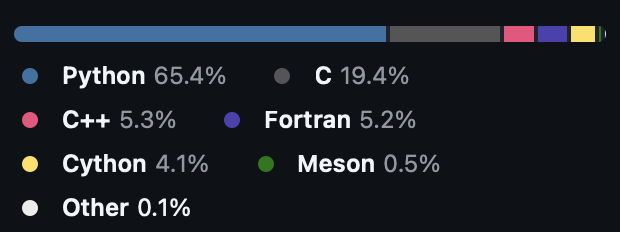

Approaches for compiled code:

  • delegation (if-else to existing implementations)
  • dispatching (~automatic delegation)
  • translation to Python (scipy.spatial.transform)
    • Existing Cython kernel for NumPy
    • Python translation for other backends

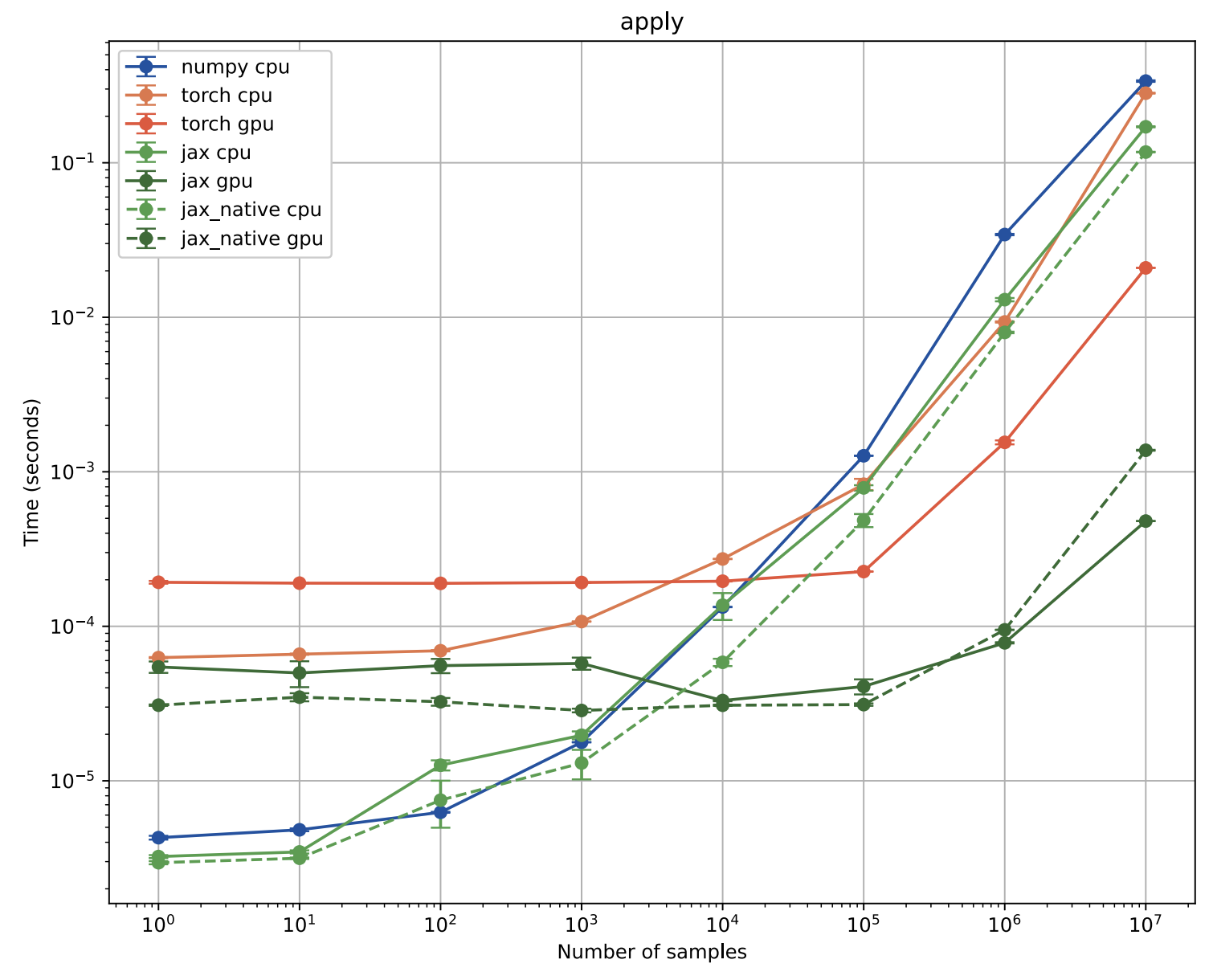

Status — scipy1 (3/3)

Status — scikit-learn1 (1/3)

  • experimental support (also uses SCIPY_ARRAY_API env var)
  • vendoring array-api-compat and array-api-extra
  • 3800+ tests:
    • libraries: array-api-strict, cupy, and torch
    • devices: CPU, MPS, CUDA (with GPU CI)
    • float32 and float64 dtypes

Status — scikit-learn1 (2/3)

  • 11 estimators (1 classifier, 1 regressor, 1 density estimator, 8 transformers)
  • 42 public functions (scoring functions and distances computation)
  • Up to 30x speed-up observed when using a GPU on Google Colab for estimators such as Gaussian Mixture Models or PCA

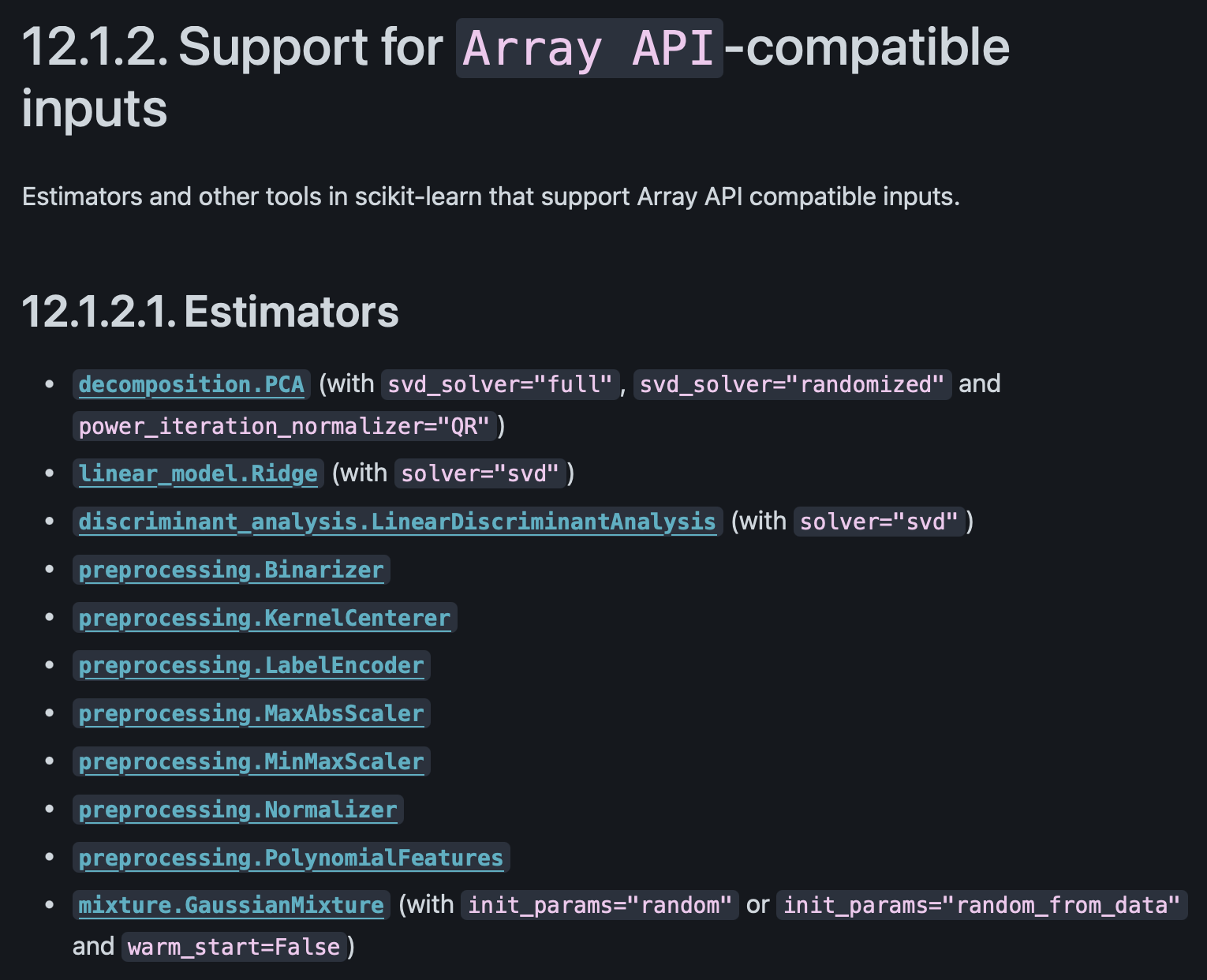

Status — scikit-learn (3/3)

https://scikit-learn.org/dev/modules/array_api.html

Status — other projects

  • glass-dev/GLASS
  • magpylib
  • icaros-usc/pyribs
  • EleutherAI/polyapprox
  • NeilGirdhar/efax

Bonus Projects

  • mdhaber/marray
    • masked arrays with any array backend (like numpy.ma)
  • quantity-dev/quantity-array
    • prototype for units with any array backend

Looking Forwards

What’s next?

  • mainly: more adoption in consuming libraries!
  • upstreaming testing utilities from scipy & scikit-learn
    to array-api-extra
  • array-api-typing development

Sprint

  • Come and chat about the standard, and/or contribute to scikit-learn or array-api-extra!

With thanks to:

  • all contributors to the projects discussed in this talk
  • Ralf Gommers for leadership of the Consortium
  • Patrick J. Roddy for this Quarto talk template
  • the PyData Paris organisers and volunteers
  • everyone for your attention!
