A Hitchhiker’s Guide to the Array API Standard Ecosystem

EuroSciPy 2025

Lucas Colley

2025-08-20

Scan to view the slides

About Me

• Maintainer: SciPy, Pixi, array-api-extra
• Consortium for Python Data API Standards Member
• Computer Science & Philosophy Undergraduate, University of Oxford
• Working @ prefix.dev
  (European Summer of Code)

Agenda

1. The Idea, Motivation, and Solution
2. Tour of the Ecosystem
3. Status and Looking Forwards

The Idea

Arrays

• N-dimensional, grid-like data structure
• Most famously, numpy.ndarray
• “rectangular” shape, data type
• fast, easy to manipulate
• used everywhere

Arrays

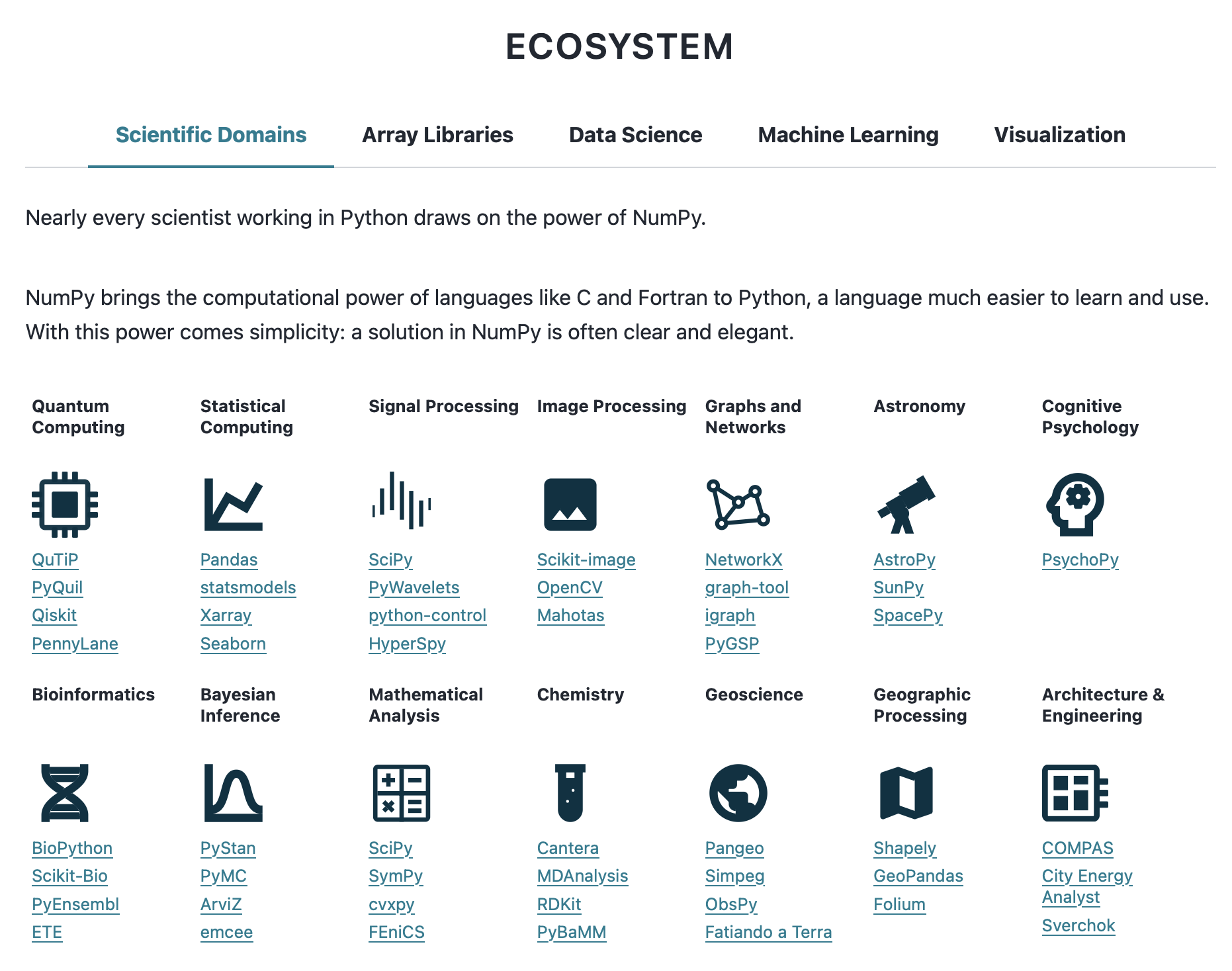

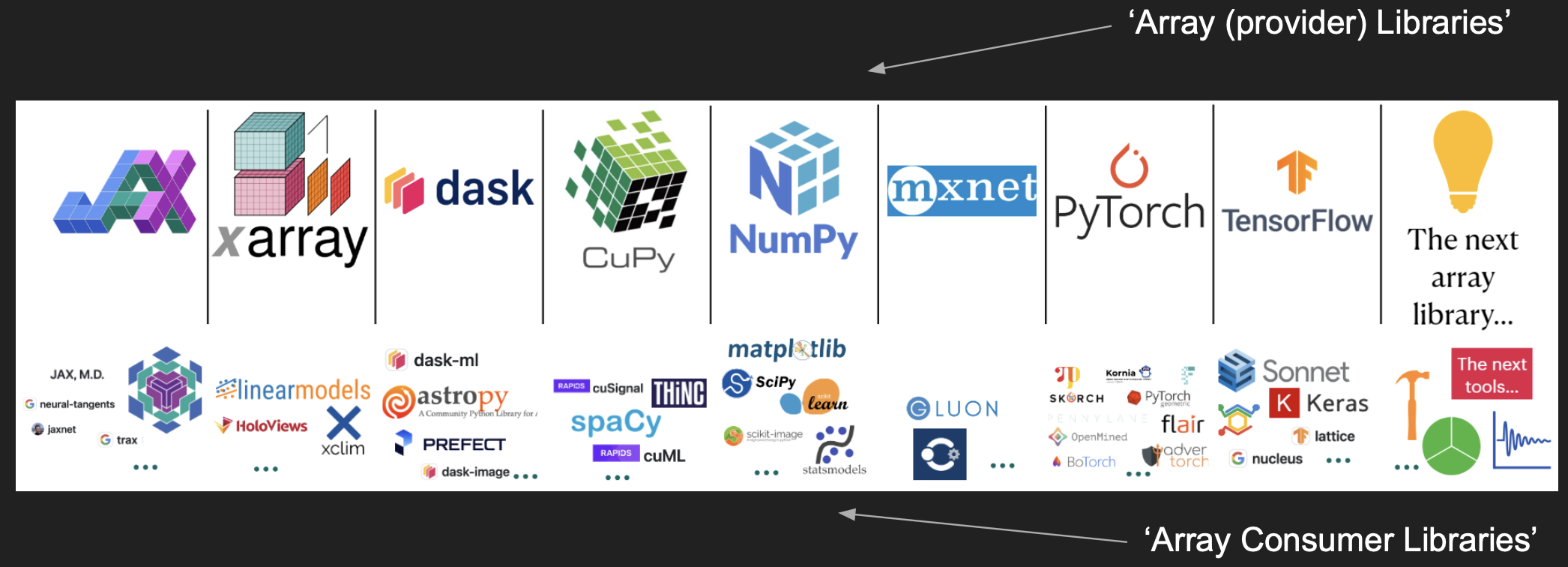

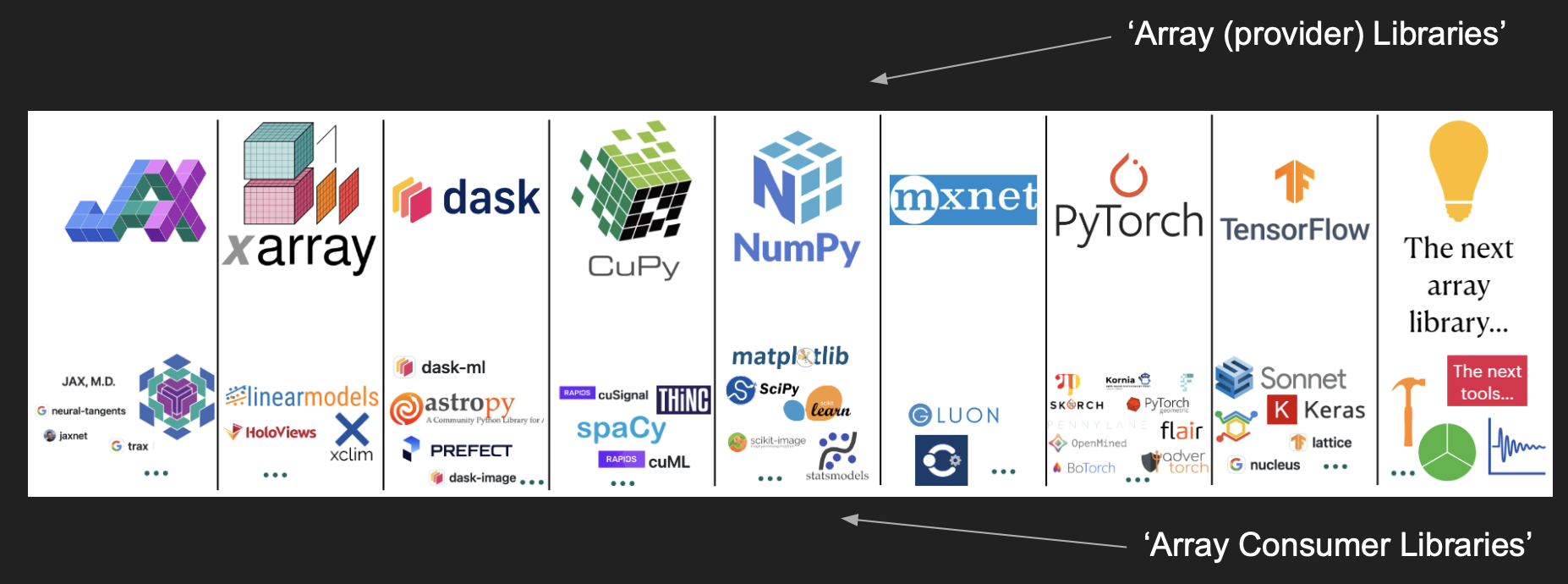

Ecosystem (now)

Credit: Aaron Meurer, ‘Python Array API Standard’, SciPy 2023

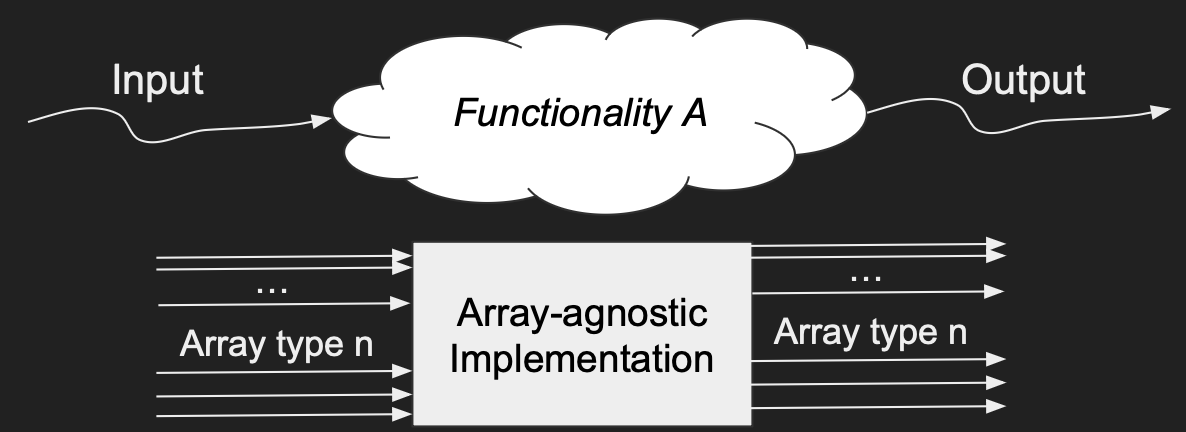

Ecosystem (the idea)

• we want to remove these barriers between array ecosystems

• some array consumer libs are doing things very specific to one array type
• but lots are only circumstantially tied to an array type
• the functionality they implement just consumes “arrays” of some sort

Motivation

Why? — End Users (1/2)

• want to be able to switch array libraries without reinventing their entire stack
  • real-world example: a reinforcement learning lab shifts their core pipelines from PyTorch to JAX¹
  • they probably had a lot of extra tools/scripts that are not specific to their domain of application
    (e.g. I/O, functionality found in SciPy)
  • it shouldn’t be difficult to keep these tools/scripts working

1. https://chrislu.page/blog/meta-disco/

Why? — End Users (2/2)

• avoid repeated transfers between array libraries or devices in their pipelines
  • can be slow, and adds undesirable complexity
• enable experimentation:
  • try out new hardware
  • try out functionality specific to an array library

Why? — Array consuming libraries

• provide users with hardware acceleration and interoperability
• without maintenance burden increasing massively
  • supporting 3 libraries shouldn’t be 3x the effort!
• libraries with useful functionality shouldn’t ‘die’ just because the ecosystem moves on to a new array library

Why? — Array providing libraries

• existing libraries:
  • interoperability with shiny new consuming libraries
  • API decisions can be made collaboratively with other array libraries
• new libraries:
  • given a concrete API to implement
  • rewarded with automatic compatibility with consuming libraries

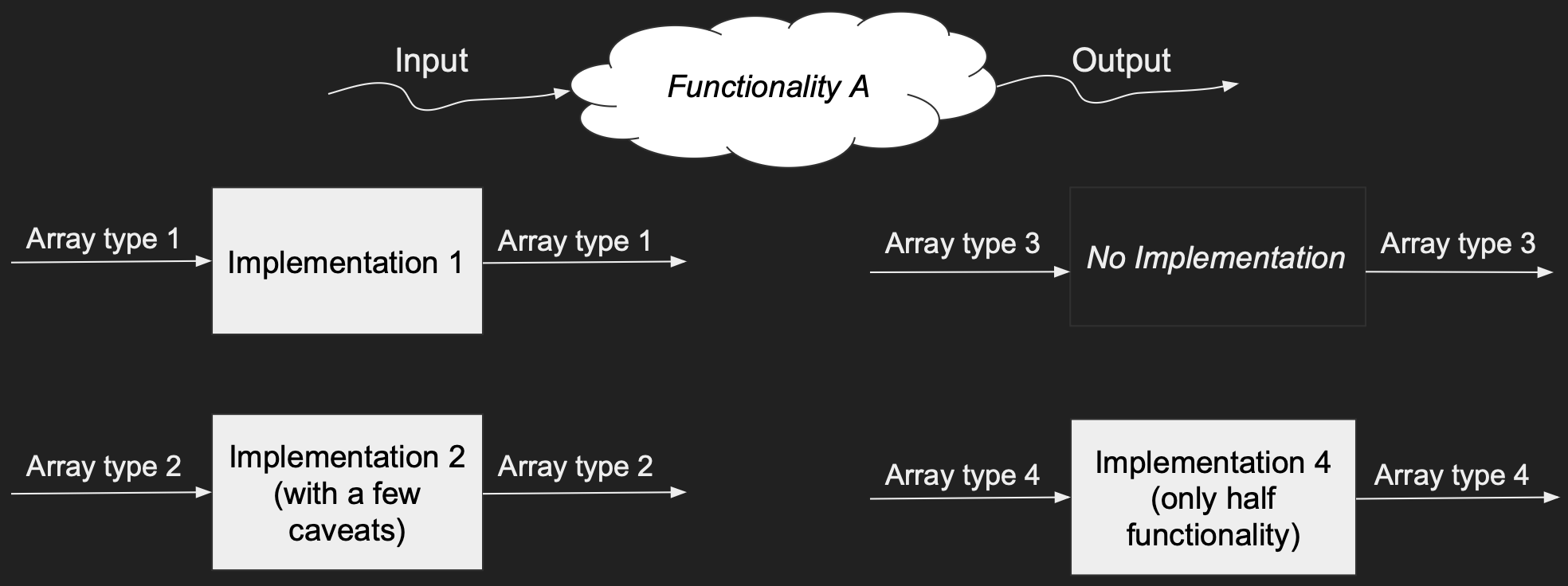

Why? — Ecosystem

Why? — Ecosystem

• reduce duplicate work and maintainer burden

Solution

How?

The Consortium

• ‘The Consortium for Python Data API Standards’
• https://data-apis.org
• cross-ecosystem consortium
• has been working on this for 5 years now

Tour of the array API standard ecosystem

Tour

Libraries under the consortium umbrella:

• array-api
• array-api-tests
• array-api-compat
• array-api-strict
• array-api-extra
• array-api-typing

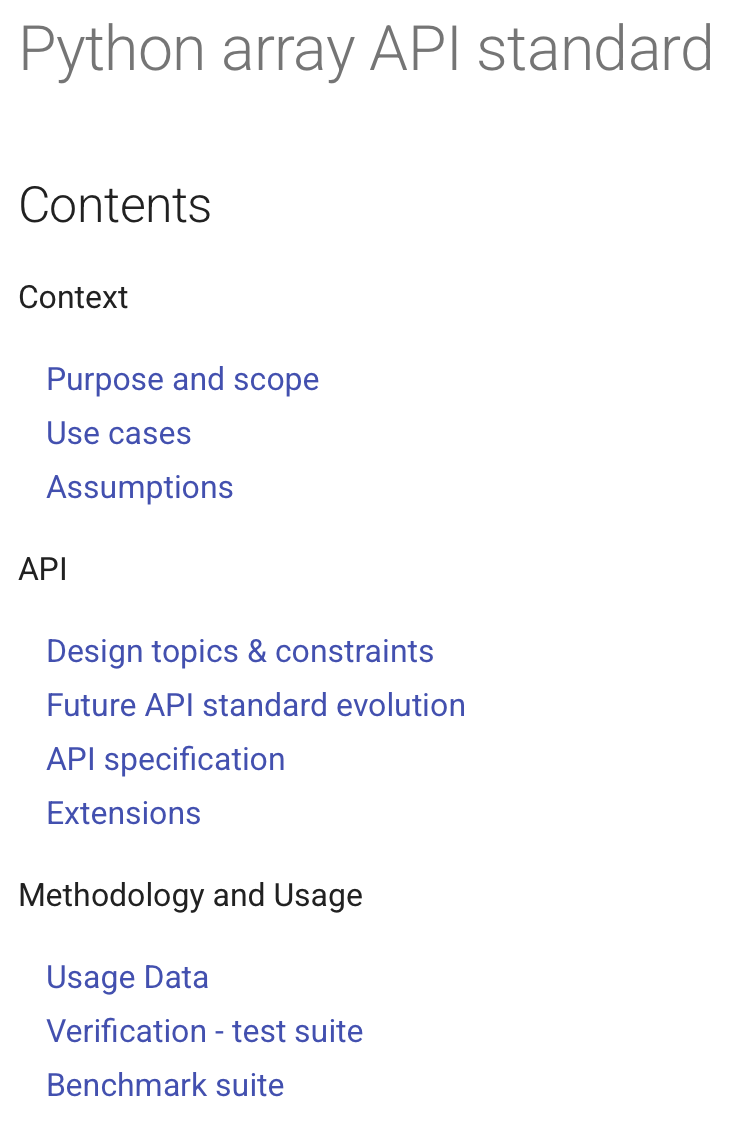

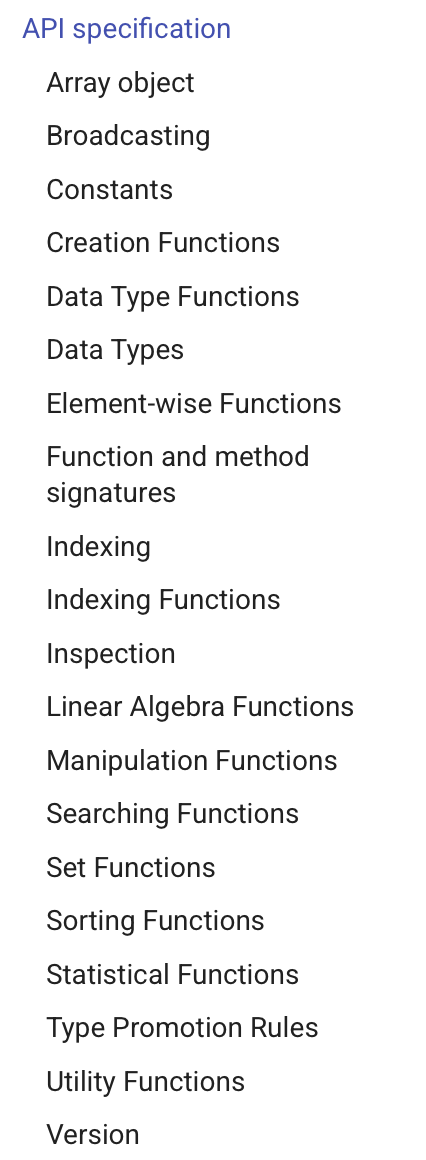

Tour — array-api

Tour — array-api

Tour — array-api

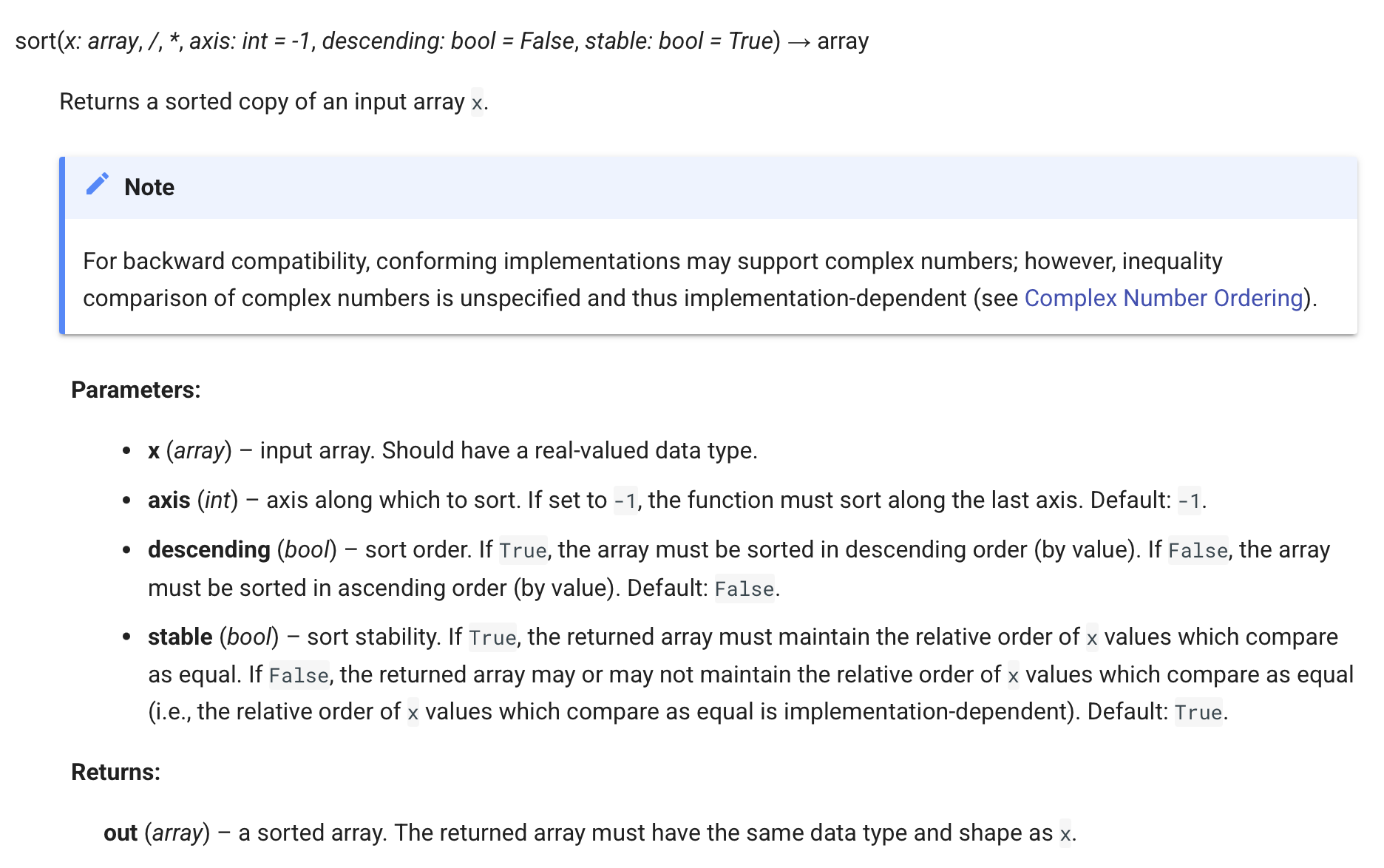

• tells array (providing) libraries what to implement
• tells array consuming libraries the API which they can use

The Array API Standard

Aaron’s SciPy 2023 Talk

• past work, design principles, methodology

Tour — array-api-tests

• tests for compliance with the standard API specification
• for array (providing) library developers
• uses hypothesis (hear more in the SciPy 2023 talk)

Tour — array-api-compat (1/2)

• compatibility layer with existing array (providing) libraries
• for use in array consuming libraries

1. wrappers for compliant behaviour
   • some very thin (e.g. NumPy), some quite large (e.g. PyTorch)
   • exposes namespaces, e.g. array_api_compat.numpy

Tour — array-api-compat (2/2)

2. helper functions
   • most interesting one: array_namespace
   • get a compatible namespace for the input array

# scipy.cluster.vq.whiten
def whiten(obs, check_finite=None):
    xp = array_namespace(obs)
    if check_finite is None:
        check_finite = not is_lazy_array(obs)
    obs = _asarray(obs, check_finite=check_finite, xp=xp)
    std_dev = xp.std(obs, axis=0)
    zero_std_mask = std_dev == 0
    std_dev = xpx.at(std_dev, zero_std_mask).set(1.0)
    if check_finite and xp.any(zero_std_mask):
        {snip}
    return obs / std_dev

Tour — array-api-strict (1/2)

• strict, minimal implementation of the standard
• for consuming library developers to test their libraries
• ensure you are not relying on unspecified behaviour

Tour — array-api-strict (2/2)

# scipy/cluster/tests/test_hierarchy.py
def test_linkage_cophenet_tdist_Z(self, xp):
    # Tests cophenet(Z) on tdist data set.
    expectedM = xp.asarray([268, 295, 255, 255, 295, 295, 268, 268, 295, 295,
                            295, 138, 219, 295, 295])
    Z = xp.asarray(hierarchy_test_data.linkage_ytdist_single)
    M = cophenet(Z)
    xp_assert_close(M, xp.asarray(expectedM, dtype=xp.float64), atol=1e-10)

• can parametrise existing tests with xp
  • configure pytest to include array_api_strict
    in xp when it is installed

Tour — array-api-extra (1/3)

• for consuming library developers
• abbreviated to xpx in code

1. extra functions built on top of the standard
   • sharing functions that may be widely useful
   • implementations in terms of the standard
   • also, delegation to existing implementations

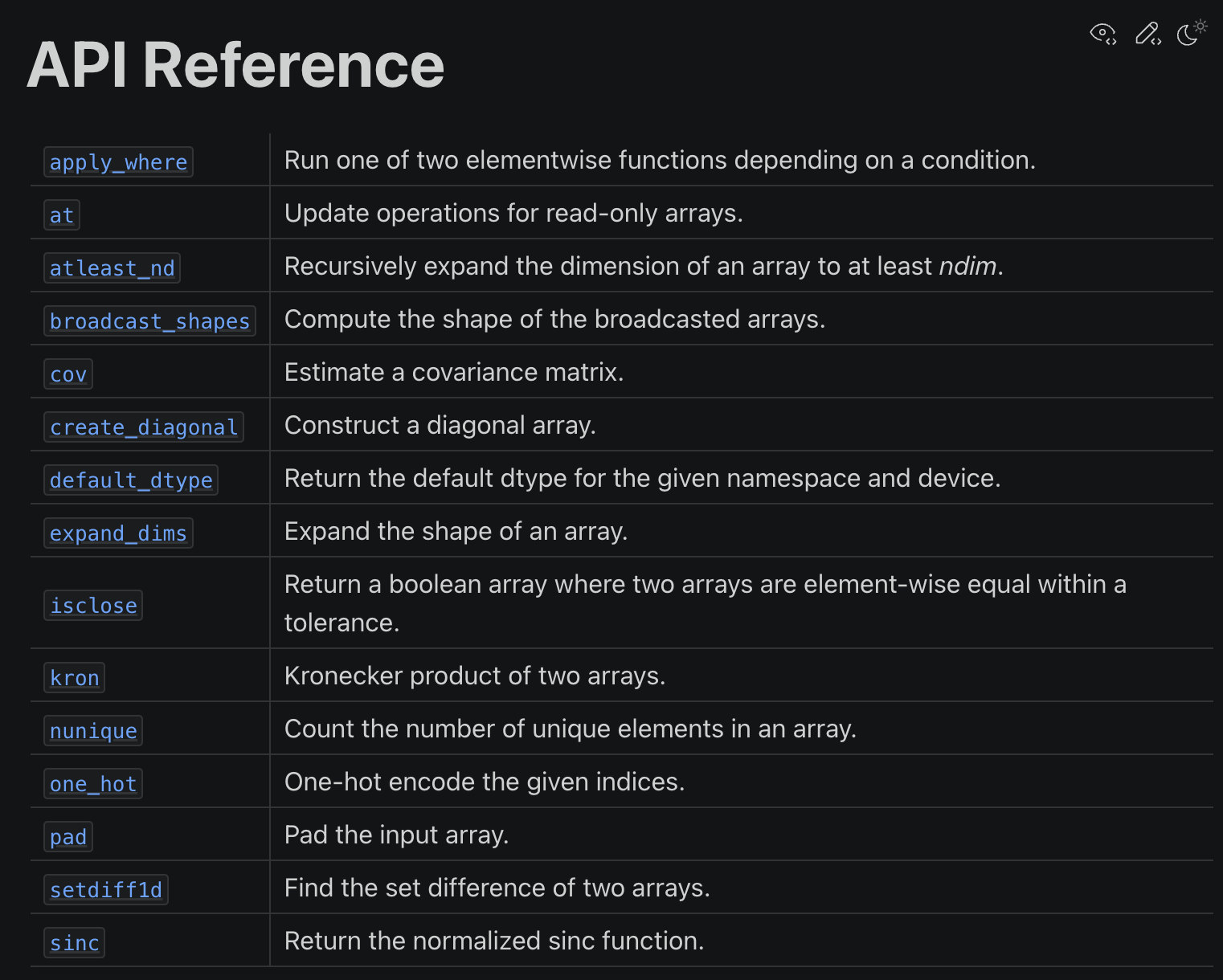

Tour — array-api-extra (1/3)

Tour — array-api-extra (2/3)

2. tools for lazy backends (JAX, Dask) and read-only arrays
   • xpx.at — index update functionality for libraries lacking in-place modifications

# scipy.spatial.transform.Rotation.inv
def inv(quat: Array) -> Array:
    return xpx.at(quat)[..., :3].multiply(-1, copy=True)

# Cython implementation for NumPy
def inv(double[:, :] quat) -> double[:, :]:
    cdef np.ndarray[double, ndim=2] q_inv = np.array(quat, copy=True)
    q_inv[:, 0] *= -1
    q_inv[:, 1] *= -1
    q_inv[:, 2] *= -1
    return q_inv

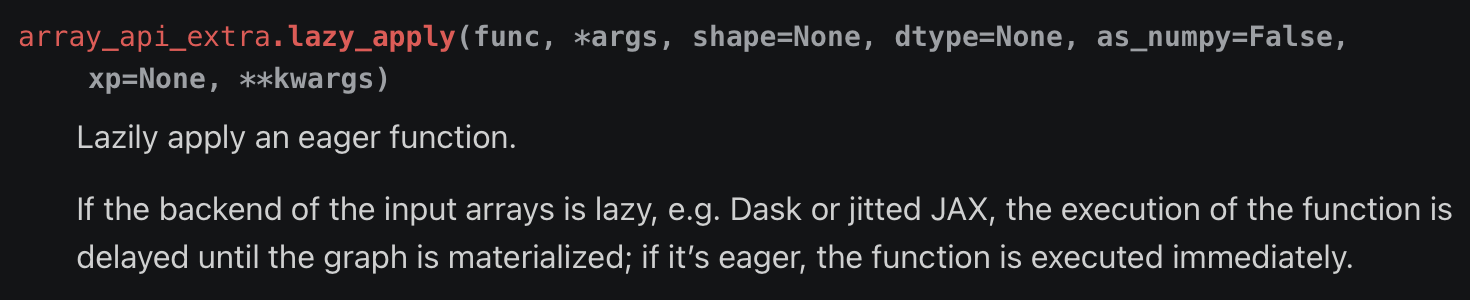

Tour — array-api-extra (2/3)

2. tools for lazy backends (JAX, Dask) and read-only arrays
   • xpx.at — index update functionality for libraries lacking in-place modifications

Tour — array-api-extra (3/3)

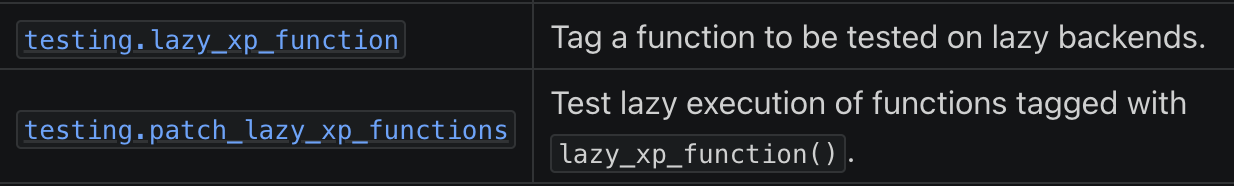

3. testing utilities for consuming libraries (more coming!)
   • xpx.testing
   • enable jitted JAX and allow Dask materialisation
   • for use in an xp pytest fixture

Tour — array-api-typing

• experimental static typing support
• still very early in development
• for consuming library authors with typed libraries

Status

Status — Array Libraries

• numpy, cupy, jax.numpy:
  ~full compatibility in main namespaces
• torch: ~full compatibility via array-api-compat
• dask.array: decent support via array-api-compat
• pretty good support in ndonnx, cubed-dev/cubed, pydata/sparse
• interest from paddle, mlx

Status — scipy (1/3)

• experimental support via setting the environment variable
  SCIPY_ARRAY_API=1
• vendoring array-api-compat and array-api-extra
• testing against array-api-strict, cupy, torch, jax.numpy, dask.array
• CI: GPU job, float32 PyTorch job
  • using Pixi for reproducibility

Status — scipy (2/3)

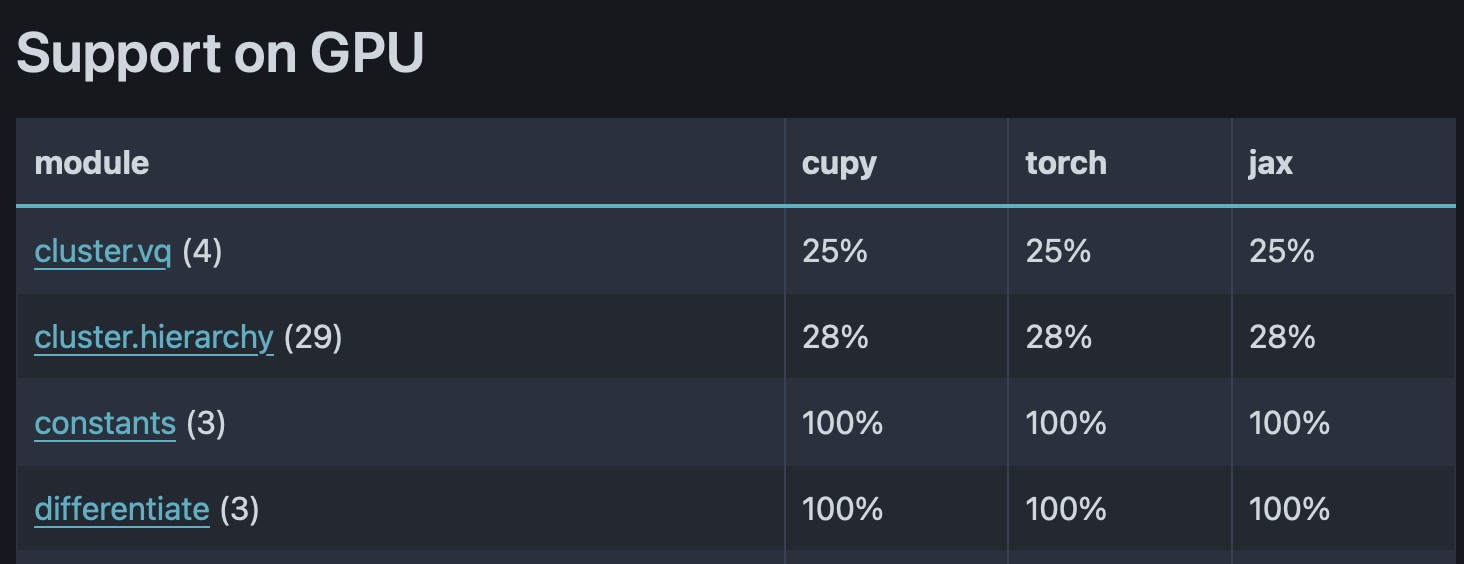

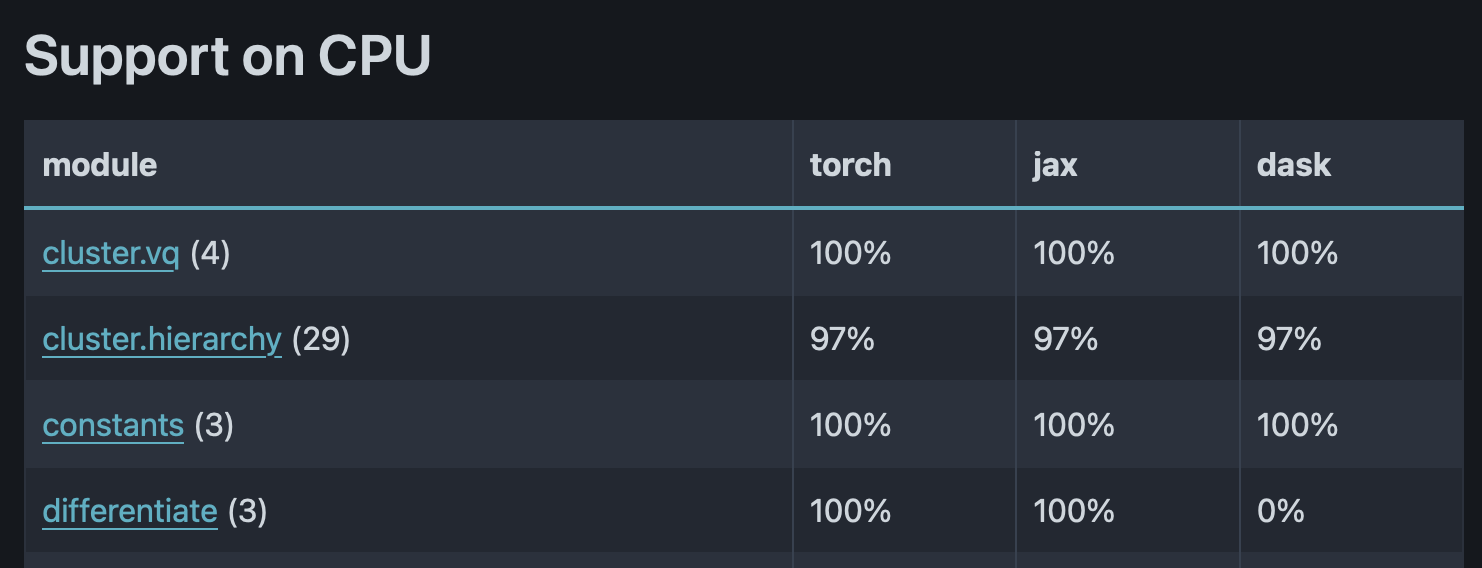

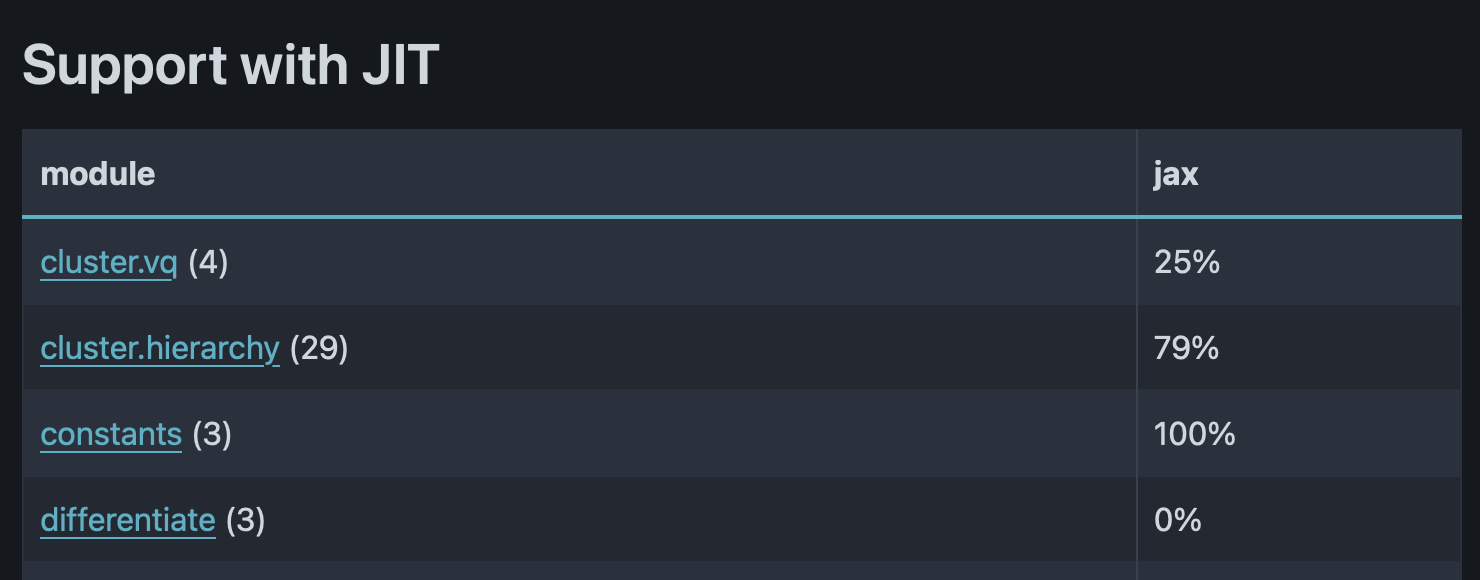

SciPy array API standard support documentation

• Now with API coverage tables!

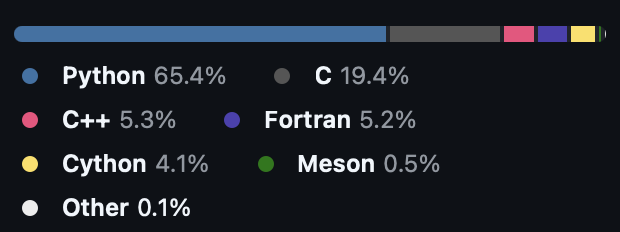

Status — scipy (3/3)

Status — scipy (3/3)

Approaches for compiled code:

• delegation (if-else to existing implementations)
• dispatching (~automatic delegation)
  • discussion right after this!
• translation to Python (scipy.spatial.transform)
  • Existing Cython kernel for NumPy
  • Python translation for other backends

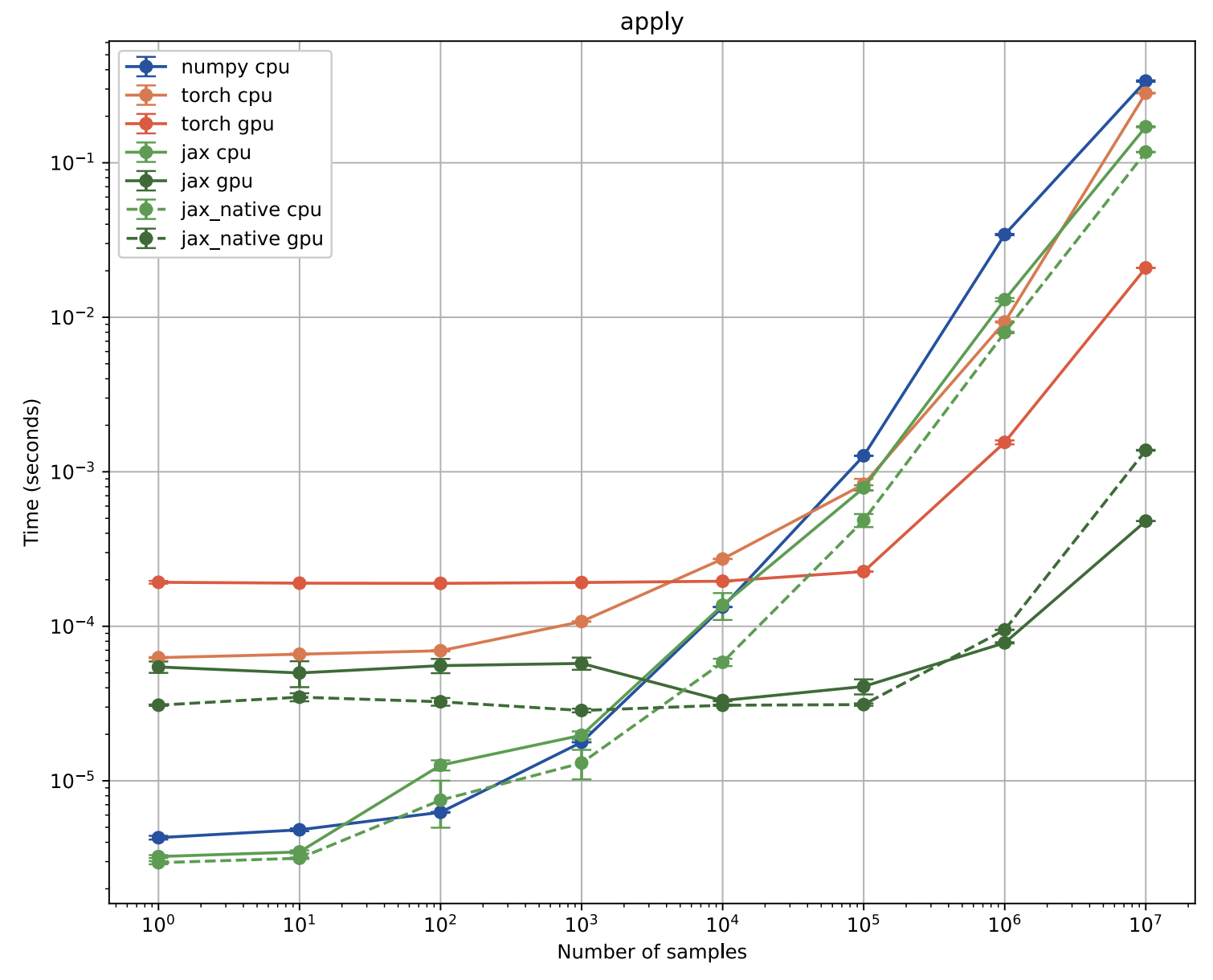

Status — scipy¹ (3/3)

1. thanks to Martin Schuck for this work and benchmarks !

Status — scikit-learn¹ (1/3)

• experimental support (also uses SCIPY_ARRAY_API env var)
• vendoring array-api-compat and array-api-extra
• 3800+ tests:
  • libraries: array-api-strict, cupy, and torch
  • devices: CPU, MPS, CUDA (with GPU CI)
  • float32 and float64 dtypes

1. thanks to Olivier Grisel for this update!

Status — scikit-learn¹ (2/3)

• 11 estimators (1 classifier, 1 regressor, 1 density estimator, 8 transformers)
• 42 public functions (scoring functions and distances computation)
• Up to 30x speed-up observed when using a GPU on Google Colab for estimators such as Gaussian Mixture Models or PCA

1. thanks to Olivier Grisel for this update!

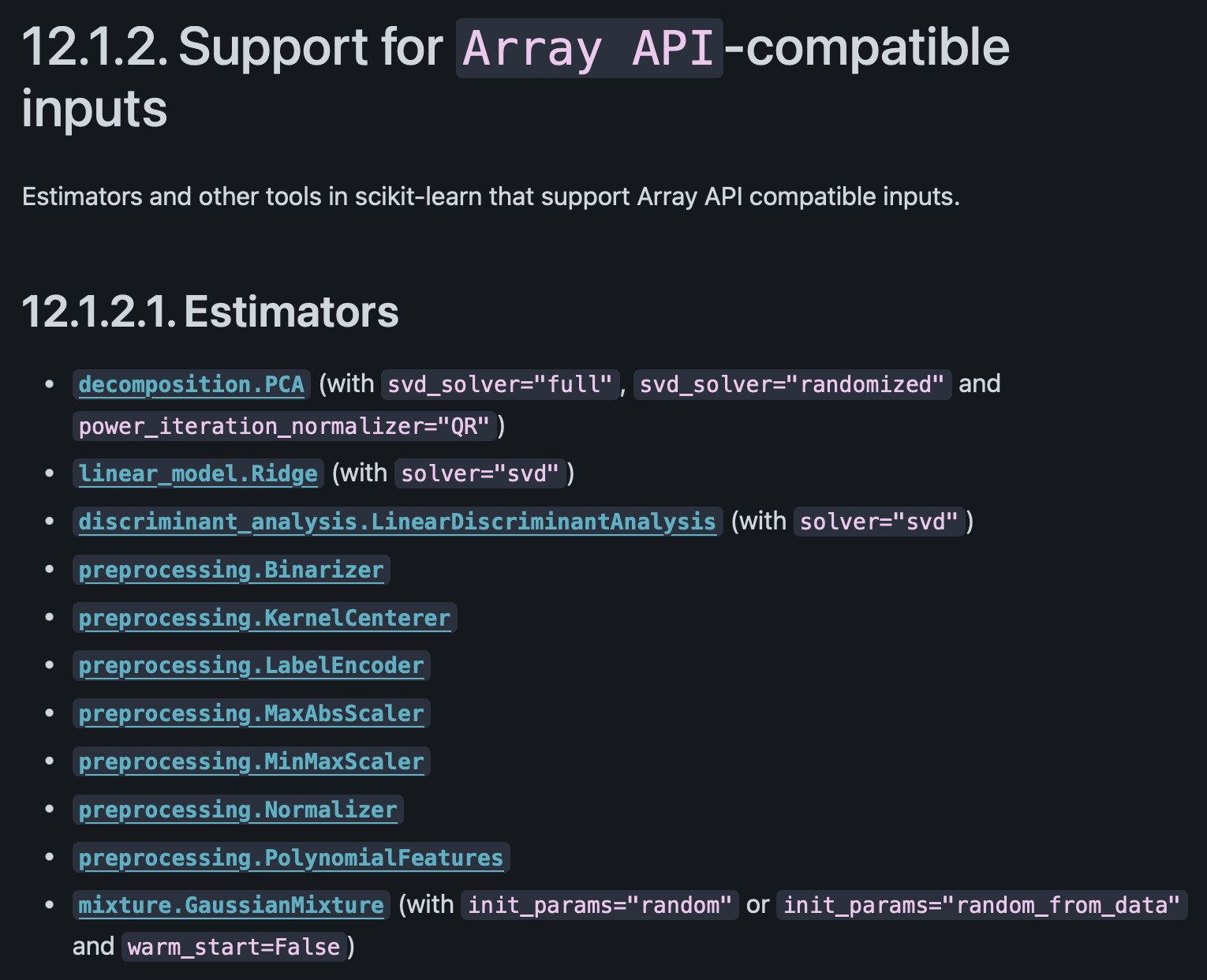

Status — scikit-learn (3/3)

https://scikit-learn.org/dev/modules/array_api.html

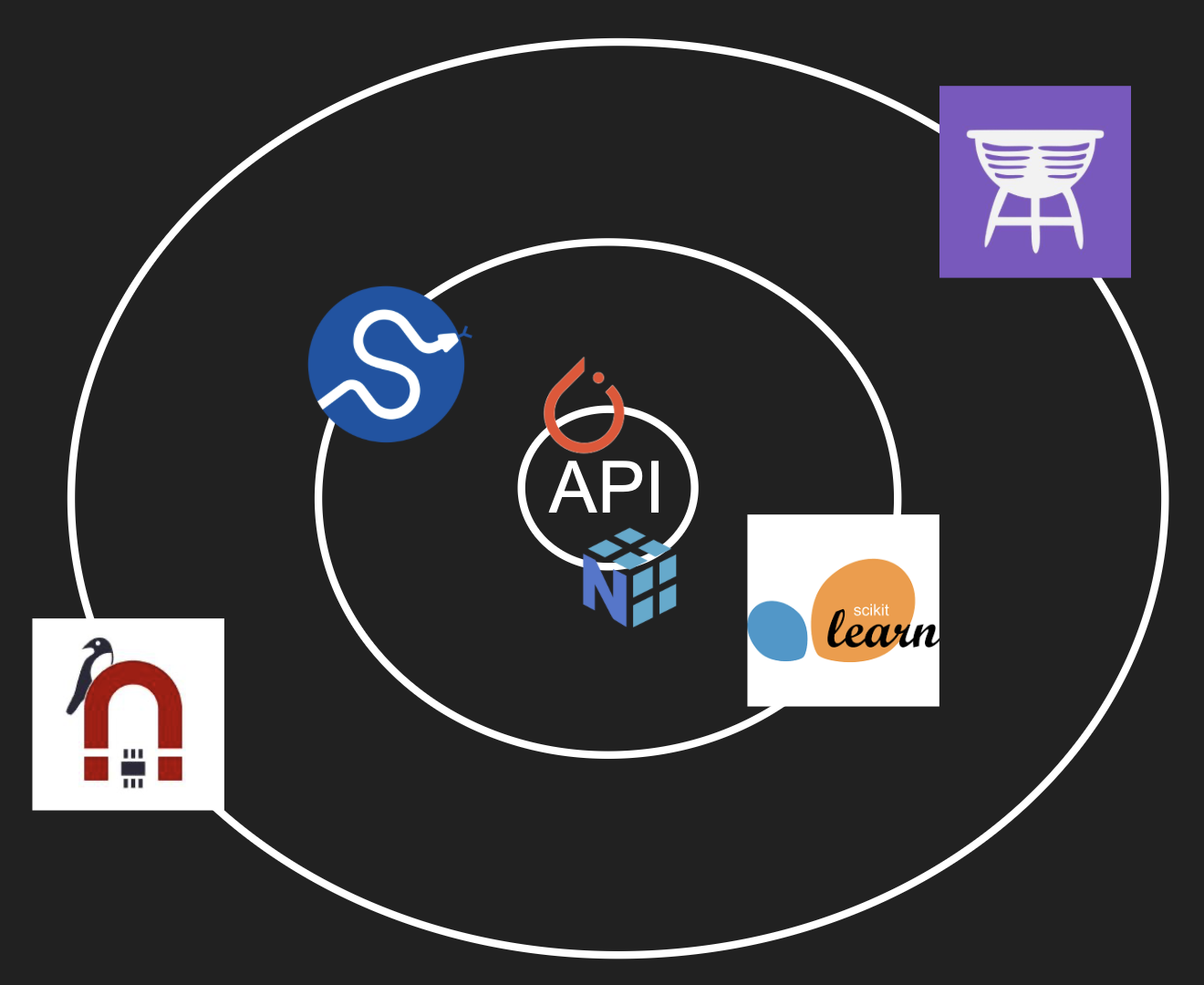

Status — other projects

• glass-dev/GLASS
• magpylib
• icaros-usc/pyribs
• EleutherAI/polyapprox
• NeilGirdhar/efax

Bonus Projects

• marray — come and see my poster!
• quantity-array
  • prototype for units with any array backend

Looking Forwards

What’s next?

• mainly: more adoption in consuming libraries!
• upstreaming testing utilities from scipy & scikit-learn
  to array-api-extra
• array-api-typing development

Sprint

• Come and chat about the standard, and/or contribute to array-api-extra (or scipy)!

With thanks to:

• all contributors to the projects discussed in this talk
• Ralf Gommers for leadership of the Consortium
• Patrick J. Roddy for this Quarto talk template
• the EuroSciPy organisers and volunteers
• everyone for your attention!
